Embedded TR-069 Protocol Stack

CWMP Protocol Stack And Highly Customizable Data Model

The Axiros AXACT CWMP client is used to provide TR-069 functionality to almost any kind of device. AXACT provides a fully Broadband Forum (“BBF”) standards compliant TR-069 protocol implementation together with a highly customizable data model, which allows an ACS to configure and monitor every feature implemented on the device.


  • Fully written in C (C90)

  • Compatible with every POSIX-compliant system (Linux, macOS, Android, etc.) and Windows

  • Full support for TR-069 Amendment 5 and subset of TR-069 Amendment 6

  • Supports every BBF compliant data model:

    • Root Models like Device:2 (TR-181i2) and also InternetGatewayDevice:1 (TR-098)

    • All service Models (TR-104, TR-135, TR-140, TR-196 ...)

    • Any vendor specific extensions specified either according to the rules in TR-106/TR-154 or defined in code

  • Support for ATP-069 (BBF.069 certification)

  • Field proven technology, interoperability tested at UNH IOL Plugfests

  • Modular design for easy customization

  • Built in XMPP client for connection requests

  • Various extension modules available

  • Lightning fast implementation and integration due to modular design, extensive error checking; very high degree of automation

  • Comes with extensive tooling and integration support

  • Very lightweight: 200 - 350 kB binary, depending on selected features and datamodel

Functionalities:

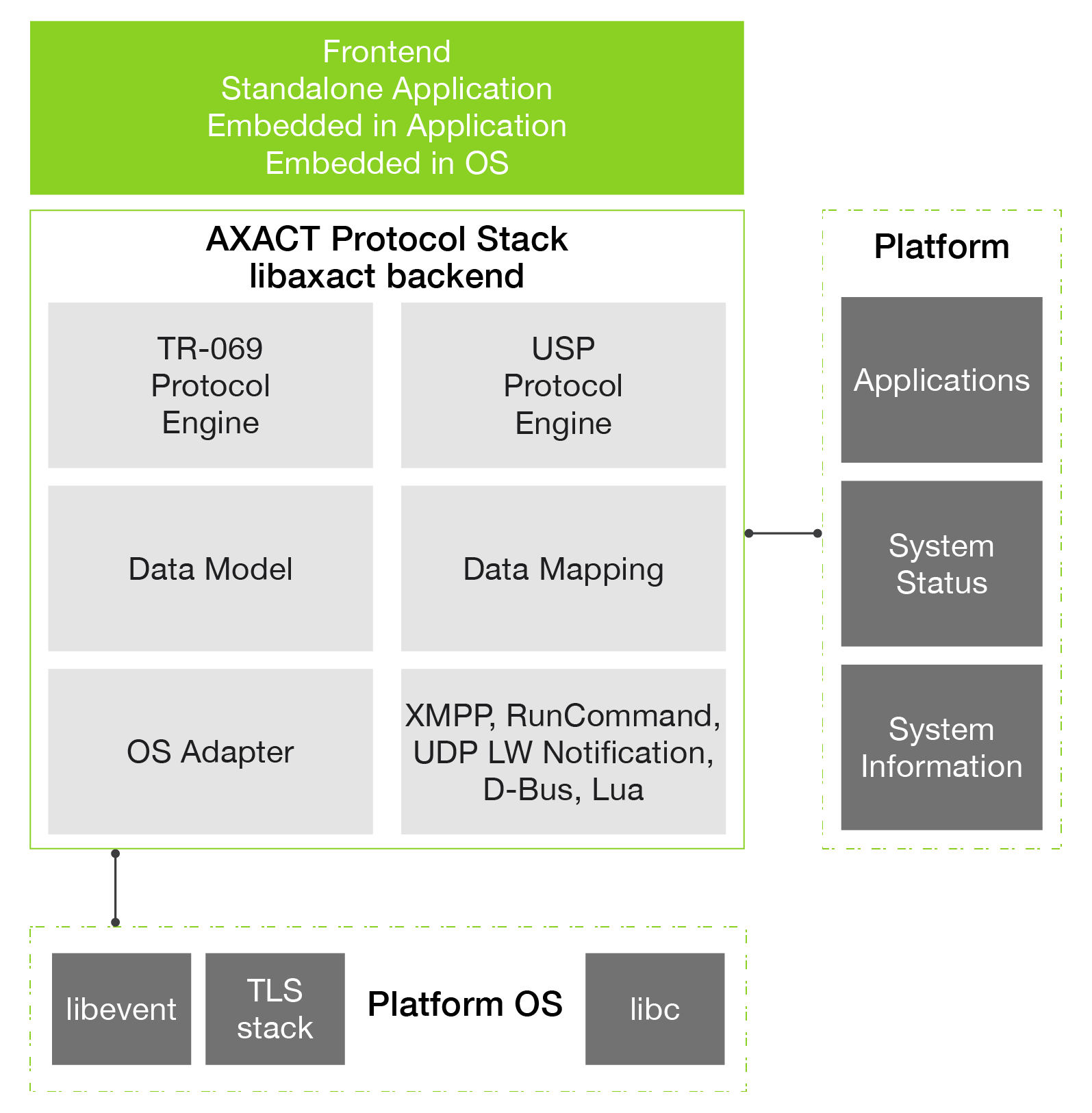

Architecture:
