Zero-Touch Connectivity: Understanding the Guidelines of CPE-ACS Communication
In modern managed networks, seamless device onboarding and maintenance are essential. This is where the interaction between the Auto Configuration Server (ACS) and Customer Premises Equipment (CPE) becomes critical.
The ACS acts as the central management system, while the CPE (such as routers or gateways) operates as the managed endpoint. Their communication is standardized by the Broadband Forum’s TR-069 specification, also known as the CPE WAN Management Protocol (CWMP).
At its core, CWMP enables Zero-Touch Provisioning (ZTP), allowing devices to automatically configure themselves when connected to the network.
Why TR-069 Matters
The protocol provides a unified framework for remote device management, covering four key areas:
Provisioning: Initial setup, configuration and service activation.
Maintenance: Firmware management and configuration updates
Monitoring: Performance tracking and status reporting
Diagnostics: Remote troubleshooting and fault isolation
The Communication Stack
CWMP is built on a layered protocol stack designed for compatibility and security, while remaining “firewall-friendly” by using common web technologies:
Security (TLS): Communication must be encrypted using TLS 1.2 or 1.3 to protect sensitive data.
Messaging (SOAP/XML): Remote Procedure Calls (RPCs) are encapsulated in SOAP messages formatted in XML.
Transport (HTTP/HTTPS): The CPE initiates communication with the ACS using HTTP POST requests, typically over standard ports (80/443)

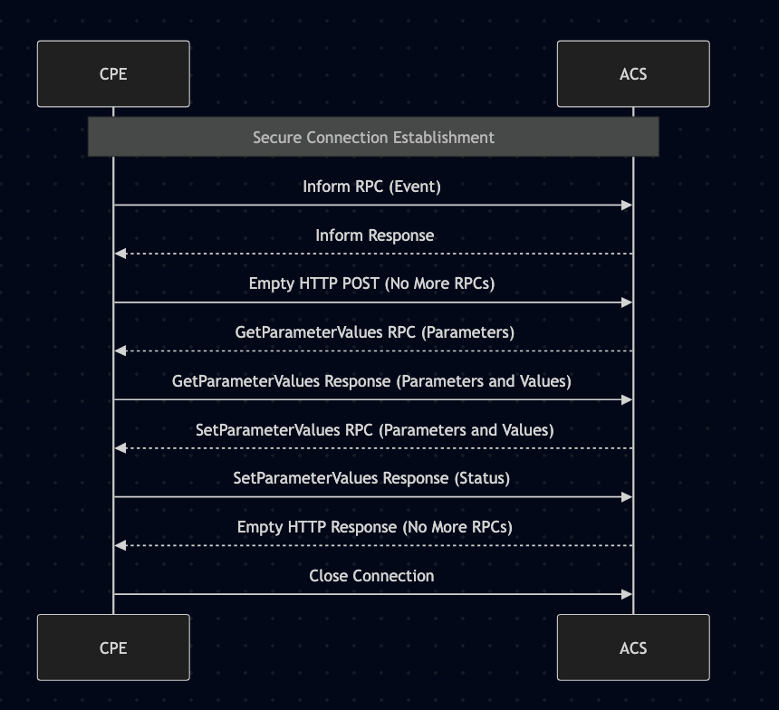

Session Flow and Event Codes
A CWMP session is always stateful and typically initiated by the CPE. Each session begins with an Inform message, which includes Event Codes explaining why the session was triggered:
By having a clear view of your entire fleet from a central dashboard, you can:
0 BOOTSTRAP: Sent only once, when the CPE contacts the ACS for the first time
1 BOOT: Sent every time the device completes a power cycle
2 PERIODIC: Sent at a pre-configured interval (the PeriodicInformInterval) to ensure the device is still manageable
4 VALUE CHANGE: Sent if a parameter (like an SSID) was changed locally by the user.
6 CONNECTION REQUEST: Sent when the ACS initiates a session by pinging the CPE’s Connection Request URL.
Connection Request Types
Although the CPE usually initiates communication, the ACS must sometimes trigger sessions remotely. Since many devices sit behind firewalls or NAT, CWMP defines several methods:

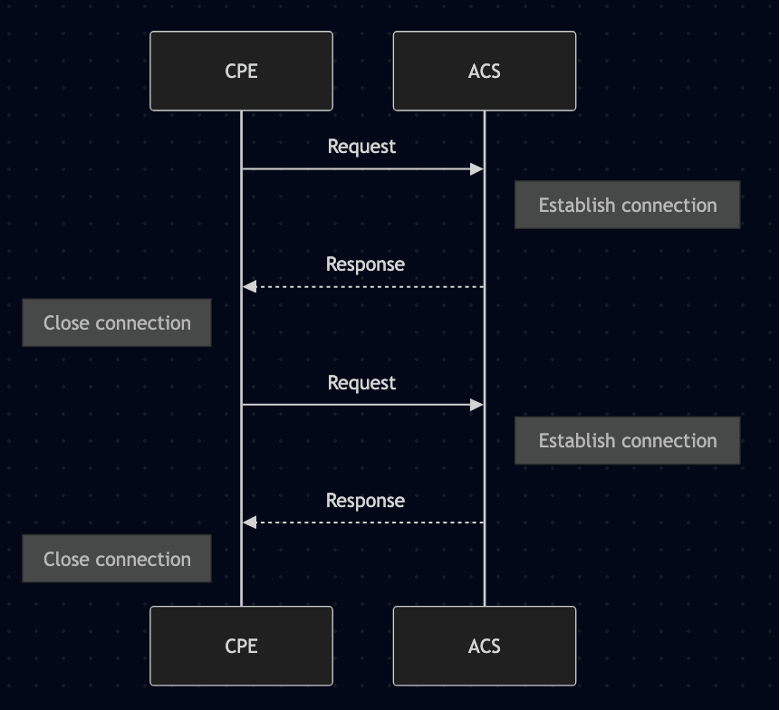

A. HTTP Connection Request (Standard): If the CPE has a public IP address, the ACS sends an HTTP request to the device’s ConnectionRequestURL. The CPE authenticates the request and initiates a session back to the ACS.
B. STUN (TR-111) for NAT Traversal: For devices behind NAT, STUN creates and maintains a public-facing binding (a “pinhole” in the firewall). The ACS sends a UDP packet to this mapped port to wake the device.

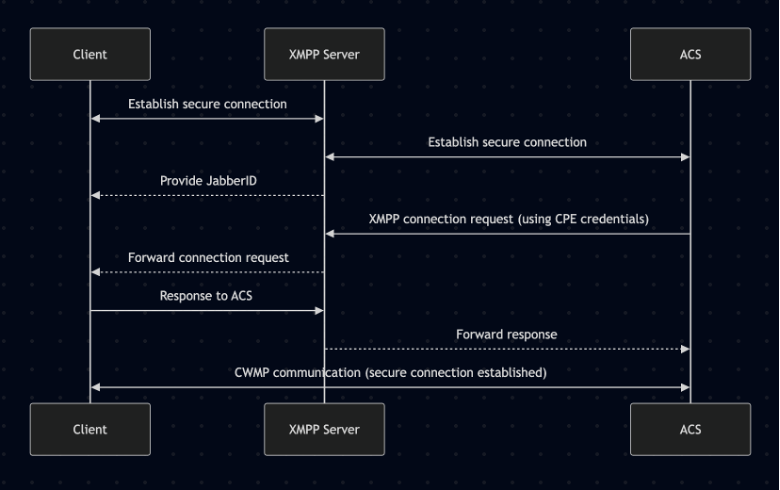

C. XMPP (Annex K): For high-security or real-time environments, XMPP allows persistent connections via a messaging server. The ACS sends a lightweight message to trigger immediate communication.
The Data Model (TR-181)
While TR-069 defines how communication happens, TR-181 defines what is being communicated. It provides a standardized, hierarchical data model representing all configurable parameters within a device.
Structure
Parameters are organized in a tree-like hierarchy, where each entry has:
A path (e.g., Device.WiFi.SSID.1.SSID)
A type (string, boolean, integer)
An access level (read-only or read-write)
Common Objects
Device.ManagementServer.: ACS configuration, credentials, inform settings
Device.WiFi.: wireless settings, SSIDs, security
Device.IP.Interface.: WAN/LAN network configuration
Key RPC Methods (Remote Procedure Calls)
CWMP relies on Remote Procedure Calls (RPCs) to exchange commands and data:
| Method | Direction | Purpose |
|---|---|---|
| GetParameterValues | ACS → CPE | Retrieve parameter values |
| SetParameterValues | ACS → CPE | Modify device configuration |
| GetParameterNames | ACS → CPE | Discover supported parameters |
| Download | ACS → CPE | Trigger firmware/config download |
| Reboot | ACS → CPE | Restart the device |
| TransferComplete | CPE → ACS | Confirm successful download |
Security and Authentication Guidelines
Security is a critical aspect of ACS-CPE communication. A misconfigured system could allow large-scale unauthorized access.
HTTPS and Certificates
All communication should use HTTPS. The CPE must validate the ACS certificate using a trusted Certificate Authority (CA).
Invalid or expired certificates must result in immediate session termination to prevent Man-in-the-Middle attacks.
Digest Authentication
CWMP uses HTTP Digest Authentication, which transmits credentials as a hashed value rather than in plain text, to help protect them from interception.
Summary
Adhering to these guidelines allows for Zero-Touch Provisioning (ZTP). When a device is plugged in, it automatically contacts the ACS, receives its configuration, and goes online without manual intervention. This reduces operation costs and significantly improves the customer experience.
